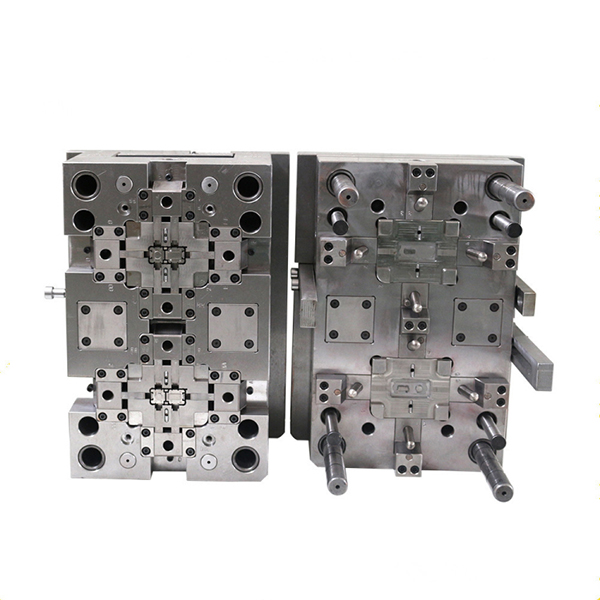

Plastic Car Air Conditioner Accessories Parts Moulds Auto Moulds
Injection mold material: S718, 718H, 738, SKD-61, NAK80, S136,
S136H, 8407, hardness 46-50, heat treatment
Die casting mold material: S 8407, hardness 48-52, Japan SKD-61.
Plastic Material:
ABS,AS,PP,PPS,PC,PE,PEI,PES,POM,PMMA,PS,HDPE,TPE,TPU etc.
Alloy material: zinc alloy, aluminum alloy, magnesium alloy
Mould Information:
Product Name
| Professional Plastic injection mould |
| Product material | ABS |
| Core&Cavity Steel | 718 |
| Steel hardness: | HRC35-38 |
| Mould Standard | DME |
| Cavity Number | single |
| Injection System | side gate |
| Ejector System | ejector block |
| Cycle Time | 35S |
| Tooling lead time | 60 days |
| Mould life | 500000 times |
| Quality assurance | ISO9001 |
|
| Our Advantage | 1.High quality |
| 2.Reasonable price |
| 3.On-time delivery |
| 4.Good After-sale service |
| 5.Strict quality control |
| 6. All the moulds are automatic. |
|
| Offer you | In-time response on letters, telephone calls or fax |
| In-time supply the quotation and mould designs |
| In-time communication on the technical points |
| In-time sending pictures for the mould machining progress and mould
finishing schedule |
| In-time mould test and sample delivery |
| In-time mould delivery |
|
| For more information please contact us. |
1. Sample or 3D Drawing Provided by Client (According to 3D design or samples for quotation)
⇓
2. Negociations ( About the price of mould, the size of the mold, and material.send
quotation for you)
⇓
3. Product 3D Design ( Our experienced engineers and designers make the 3D design for you)
⇓
4. Design Confirmed ( Confirm the drawing and mould material, and other details with
custmers)
⇓
5. Mould Making (Purchase mold base and materials, Use CNC, EDM machine, assembly
mold, etc.)
⇓
6. Tryout Mould ( Trial 10 samples)
⇓
7. Inspect Samples ( Our engineers inspect the detail of sample)
⇓
8. Sample Sending and Confirmed (Send about 10 samples for customers)
⇓
9. Mass Production (After confirm the samples)
⇓
10. Delivery (Shipping by sea or by air)
Mould Information:
| Part Information |
| Mold No. | | Project Surface | CM²/per part |
| Part Name | plastic part | Part Volume | CM³ /per part |
| Resin | ABS | Runner Volume | CM³ /per part |
| Visible Surface | smooth | Shrinkage | 0.5% |
| Mold Information |
| Mold type | 2P | Mold Base Size | 450x450x600mm |
| Gating Mode | Sub gate | Min. Mold Open Stroke | |
| Runner Mode | Hot sprue | Hydraulic Cylinder QTY | |
| Cav QTY | 1*1 | Mold Base | LKM |
| Cavity Material | S136 | Core Material | S136 |
| Machine Information |
| Part Pick Up | N/A | Machine Type | 100T |
| Runner Pick Up | N/A | Estimated Cycle | S |
| Second-Operation | N/A | Min. Clamp Force | T |
| Remark | Estimate annual output quantity is 300K units |
Machines:
Many machine tools are imported from America and Japan, which can
ensure the processing precision, good quality.they are plastic injection machines, die-casting machines. High-speed CNC
machines centers. CNC engraving and milling machine, mirror plane
EDM. Low-speed wire cutting machines. Deep hole drilling machine.
EDM machines. Milling machines. Grinding machines. 3-D and 2.5-D
Coordinate Measuring Machines.
Injection Mould Description:
Most thermoplastics can be processed by Injection Moulding. It is
used to produce all kinds of plastic parts for a wide variety of
applications, commonly such as plastic housings or body protectors,
boxes, trays, cups, mats, caps, fittings containers, buckets and so
on.
Such as household appliances, consumer electronics, power tools,
automotive dashboards. Power-tool housing, Disposable razors,
Electrical Switches, Crates/Recycling boxes, Automotive dashboards,
Television Cabinets, Drug Inhalation Units, Automotive bumpers,
Wheelie bins, Syringes, Telephone handsets, Washing-up bowls, DVDs
player, Bottle Lids/closures, Battery Casings,
Injection molding is also used to produce several everyday items
such as toothbrushes or small plastic toys. Many medical devices,
including valves and syringes, are manufactured using injection
molding as well.
