    Multi Cavity Injection Moulding Tooling For Automotive Spare Parts

    Ask Lasest Price
    Brand Name : OEM/ODM
    Model Number : HW-006
    Price : 2.55-5.55usds
    Supply Ability : 100000 pieces
    Delivery Time : 25-30days
    Certification : ISO9001
    • Product Details
    • Company Profile

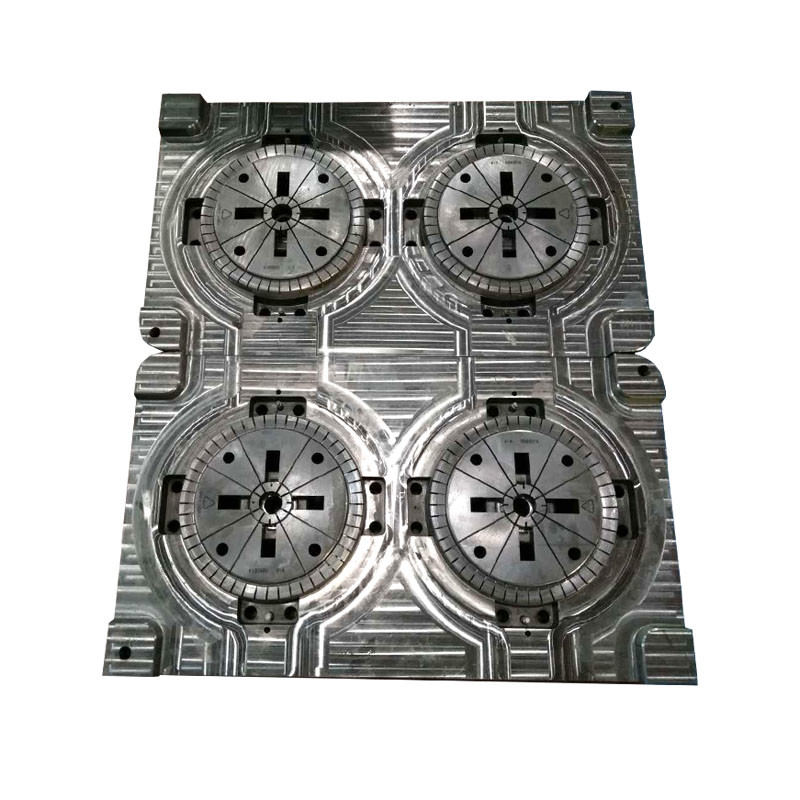

    Multi Cavity Injection Moulding Tooling For Automotive Spare Parts

    Multi Cavity Plastic Injection Tooling For Automotive Spare Parts


    Mould Information:

    NoMold description:china high-quality plastic parts injection mould
    1Material type:Standard steel
    2Cavity no.:Single or Multi Cavities or Customized
    3Cav&Cor Material:S136,SKD61,H13,718,P20 etc
    4Hardness of Cav&Cor:HRC48-53°
    5Mould Base:LKM&Hasco&DME standard
    6Surface finish:SPI A-1,SPI A-2,EDM etc
    7Mold components:Mold base, core and cavity
    8Mold Gate:Hot runner, direct sprue gate, side gate, pin-point Gate, etc
    9Runner system:Hot or cold runner
    10Mould Life:500-3000K shots
    11Product material:PA,PA6/6+GF,ABS,POM,PC,PP,PET,TPE,PVC,HDPE etc
    12Suitable for:Plastic injection Parts
    13Design software:CAD, UG, Pro E, Solidworks
    14PackageWooden or Plywood Case
    15Delivery4Weeks
    16Value-added service:Polish,texture,painting,screen printing,turnkey project
    17Export country:Europe countries,USA,Mexico,Australia ,Middle-east ,Asia etc
    Core BusinessPlastic mold making and moulding
    Design softwareUG, ProE, CAD
    Maximum mould size2,000*1,500*1,000mm
    Mold build capabilityUp to 20Ton
    Clamp forces30Ton~1,800Ton
    CavitySingle-cavity, Multi-cavity
    CertificateISO9001:2000 ;ISO14001 TS16949
    Mould materialP20, H13, 420SS
    Raw MaterialPP, PA, PA66, POM, PA6+30GF, PC, PC/ABS, ABS, PMMA, PE etc.
    Mould baseLKM standard, HASCO (equivalent), DME (equivalent)
    Gate typeCold runner/YUDO, Mold master, Synventive, INCOE, Husky hot runner
    FeatureWith inner teeth
    Appearance finishedEDM, High polish; Mirror polishing, Texture/Graining
    Mould Life300,000 shots,1,000,000 shots,etc.
    Hardness of steel18~56 HRC
    Delivery time4 to 8 weeks (4 weeks for prototype mold)
    PackageWooden case.carton

    Multi Cavity Injection Moulding Tooling For Automotive Spare PartsMulti Cavity Injection Moulding Tooling For Automotive Spare PartsMulti Cavity Injection Moulding Tooling For Automotive Spare Parts


    FAQ

    Q1. Are you a factory?
    A: We are an OEM/ODM mold factory manufacturing plastic injection mold, die casting mold, silicone&rubber mold, overmold, double shots mold, and CNC.
    Q2. Do you making the mold and also producing?
    A: Both, we making molds and also making production.
    Q3. How can I get the quotation?
    A: Please send us 2D/3D drawings with your request for Mold(mold cavity, mold life), we will quote for you within 24 working hours.
    Q4. I have no 3D drawing, how should I start the new project?
    A: You can supply us with a sample, and we will help to finish the 3D drawing design.
    Q5. What is the minimum order quantity?
    A: No MOQ requirement, Prototype, sample, small batch, and large volumes are all acceptable.
    Q6. How long is the lead-time for mold?
    A: It all depends on the mold’s size and complexity. Normally, the lead time is 25-35days. If the molds are very simple and with a small size, we can work out within 15 days.
    Q7. How do you ensure quality control?
    A: We inspect products on every stage of production and ensure 100% output quality thorough QC inspection before shipment.
